Welding Nut

WELDING NUT, DISC WELDING NUT, FLAT WELDING NUT

1,Standard:open to customized
2,Thread:UNC
3,Material: low carbon steel,Stainless steel
4,SAE Class:4.8,gr2,A2
5,Metric Size:M8 M10 M12
Inch size: 1/4”,5/16”,3/8”,1/2”
6,Surface finish:mostly in the zinc plated white or yellow, or black oxide, Plain polished.
7,Packing:20-25kg Carton+Pallet   (bulk packing OR small box packing)

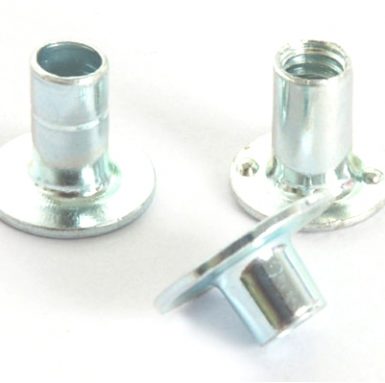

Application: disc welding nut is used in metal connection, which is an economic and effective connection. The main materials are carbon steel and stainless steel. There are three kinds of welding nuts, which are common disk welding nut, disk welding nut with hole and disk welding nut with spot. The design of the disk with hole can make the nail or screw firmly fix the material from it, and can provide a fulcrum when the nut is casted into the plastic. However, the design of the disk with welding points is mostly suitable for spot welding connection. There are three to four welding points on each side of the circular base flange, which can prevent the flange edge from rotating in the hard metal connection.

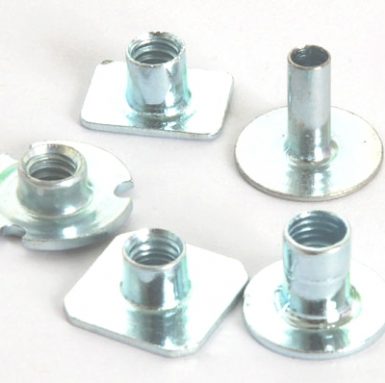

Application: flat welding nut mainly refers to the welding nut with square or strip base, mainly made of carbon steel and stainless steel. There are three kinds of welding nuts: ordinary plate welding nut, plate welding nut with hole and plate welding nut with spot. The base of the flat welded nut with holes has two round holes, which can make the nail or screw firmly fix the material, and can provide a fulcrum when the nut is casted into the plastic,. The design of flat strip welding points is mostly suitable for spot welding connection. There are two to four welding points on each side of the circular base flange, which can prevent flange edge from rotating in the connection of hard metal.
