Eye Bolt

HAIYAN BOLT produce both carbon steel with or without welding, and stainless Eye bolt.
Product Description:
Standard: OEM,customized.
GRADE: 307A, A2-304,A4-316
Material: carbon steel, alloy steel,stainless steel.
Size:from 1/4” to 1”, from 6mm to 24mm.
Surface finish:zinc plated, plain, black oxide, HDG
Packing: cartons with plywood pallet
Supply ability: 100tons per month

Check out our huge selection of carbon and stainless steel eye bolts! Available in many different style options including open, plain pattern and shoulder pattern. Choose zinc-plated steel eye bolts when you need minimal corrosion protection or 304 stainless steel eye bolts for excellent corrosion protection – even when the surface is scratched. Whether you need a steel machine lifting eye bolt, nut eye bolt or screw eye bolt, HAIYAN is you trusted eye bolt supplier.

Machine Lifting Eye Bolts

Also called machinery eye bolts or lifting bolts, this type of eye bolt is fully threaded and used for rigging, anchoring, pulling, pushing, or hoisting. Shoulder eye bolts can be used for angular lifting up to 45 degrees, however the lifting eye bolt capacity will be reduced significantly. Hoist rings are recommended for angular lifting. Eye bolts without shoulders (plain pattern) are fully threaded and are for vertical lifting only. HAIYAN supplies carbon and stainless steel machine lifting eye bolts. They are manufactured to meet ASME B18.15

Nut Eye Bolts

Also called routing eye bolts with nuts, these eye bolts are designed for through-hole applications, such as routing wire or other light duty jobs. They come in carbon or stainless steel but are not recommended for lifting applications. Manufactured to ASME Design Specification B30.26.

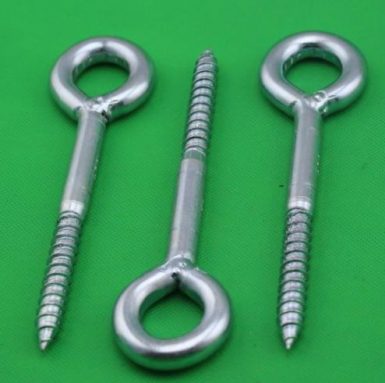

Screw Eye Bolts

Also called routing eyebolts or screw eyes, these eyebolts are designed with a sharp point to mount directly into wood. They are NOT recommended for lifting applications and should only be used in light-duty applications
