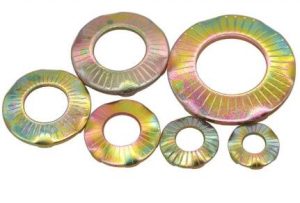

Grounding Washers , as per DIN 6795 Standard, conical washer with lugs
made of carbon steel, zinc plated
size: M4-M8
Standard: DIN 6795
| Screw Thread | d | dc | H | h | m | n | Weight kg/1000Pcs |
||||||
| min | max | min | max | min | max | min | max | min | max | min | max | ||
| M3 | 3.1 | 3.4 | 5.8 | 6.2 | 0.8 | 0.95 | 0.57 | 0.63 | 0.7 | 0.9 | 0.2 | 0.4 | 0.083 |
| M4 | 4.1 | 4.4 | 7.8 | 8.2 | 1 | 1.15 | 0.77 | 0.83 | 1.1 | 1.3 | 0.2 | 0.4 | 0.209 |
| M5 | 5.1 | 5.4 | 9.8 | 10.2 | 1.25 | 1.5 | 0.97 | 1.03 | 1.9 | 2.1 | 0.3 | 0.7 | 0.426 |
| M6 | 6.1 | 6.4 | 11.8 | 12.2 | 1.5 | 1.8 | 1.16 | 1.24 | 2 | 2.2 | 0.3 | 0.7 | 0.76 |
| M6 | 6.1 | 6.4 | 11.8 | 12.2 | 1.5 | 1.8 | 1.16 | 1.24 | 2 | 2.2 | 0.9 | 1.3 | 0.76 |
| M8 | 8.2 | 8.5 | 15.8 | 16.2 | 1.95 | 2.4 | 1.36 | 1.44 | 2 | 2.2 | 0.3 | 0.7 | 1.55 |
| M8 | 8.2 | 8.5 | 15.8 | 16.2 | 2.15 | 2.4 | 1.36 | 1.44 | 2 | 2.2 | 0.9 | 1.3 | 1.55 |
