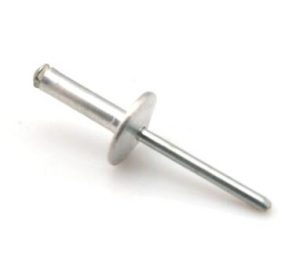

Aluminium Steel Big Head Blind Rivets
Size 4*26mm or more options
1. Model Options
Open end or close end
Dome head or flat head
CSK flange, Oval or large flange
2. Material Options
Auminium/Alloy
Aluminium/Steel 5050, 5052, 5055
Steel/Steel
All Stainless Steel
3. Color Options
Plain, black, grey, red, orange, etc
4. Standard Options
DIN or IFI
Metric or Inch sizes
5. Specifications Available
Dia 3.2 to 6.4mm
Length 8 to 70mm
| Size | Alu/Steel | All Steel |
| 3.2X6 | 12.80 | 30.00 |
| 3.2X8 | 13.50 | 32.00 |
| 3.2X10 | 15.50 | 34.00 |
| 3.2X12 | 16.50 | 36.00 |
| 3.2X14 | 17.70 | 41.00 |
| 3.2X16 | 18.50 | 45.00 |
| 3.2X18 | 19.20 | |
| 3.2X20 | 20.50 | |
| 4.0X6 | 17.50 | 38.00 |
| 4.0X8 | 18.00 | 40.00 |
| 4.0X10 | 19.00 | 42.00 |
| 4.0X12 | 19.50 | 45.00 |
| 4.0X14 | 20.50 | 48.00 |
| 4.0X16 | 21.00 | 51.00 |
| 4.0X18 | 22.00 | 54.00 |
| 4.0X20 | 25.00 | 61.00 |
| 4.8X8 | 24.00 | 49.00 |
| 4.8X10 | 25.50 | 51.00 |
| 4.8X12 | 27.00 | 54.00 |
| 4.8X14 | 30.00 | 57.00 |
| 4.8X16 | 32.00 | 61.00 |
| 4.8X18 | 34.00 | 65.00 |
| 4.8X20 | 38.00 | 69.00 |
